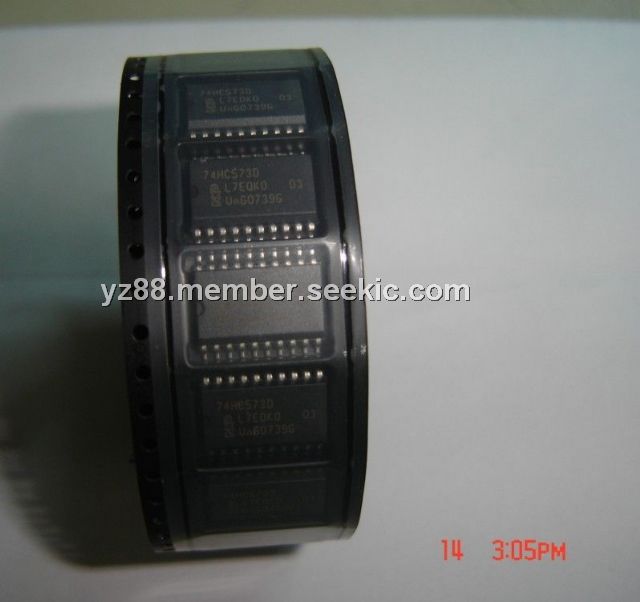

74HC573D

high-speed, 20SOIC, octal D-type transparent latches, 3-state, -0.5 to +7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.09~0.10

PartNumber:: 74HC573D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-09

From Other Seller

Part Number:74HC573D
US $0.09 - 0.10
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC573D is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC573D has octal D-type transparent latches featuring separate D-type inputs for each latch and 3-state true outputs for bus oriented applications. A latch enable (LE) input and an output enable (OE) input are common to all latches. When LE is HIGH, data at the Dn inputs enter the latches. In this condition the latches are transparent, i.e. a latch output will change state each time its corresponding D input changes. When LE is LOW the latches store the information that was present at the D-inputs a set-up time preceding the HIGH-to-LOW transition of LE. When OE of the 74HC573D is LOW, the contents of the 8 latches are available at the outputs. When OE is HIGH, the outputs go to the high-impedance OFF-state. Operation of the OE input does not affect the state of the latches.

Parametrics

74HC573D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA max; (3)IOK, output clamping current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA max; (4)IO, output current VO = -0.5 V to (VCC + 0.5 V): ±35 mA max; (5)ICC, quiescent supply current: 0 mA max; (6)IGND, ground current: -70 mA max; (7)Tstg, storage temperature: -65 to +150 ℃.

Features

74HC573D features: (1)Inputs and outputs oopposite sides of package allowing easy interface with microprocessors; (2)Useful as input or output port for microprocessors and microcomputers; (3)3-state non-inverting outputs for bus oriented applications; (4)Commo3-state output enable input; (5)Functionally identical to 74HC563; 74HCT563 and 74HC373; 74HCT373; (6)Complies with JEDEC standard no. 7A; (7)ESD protection: HBM EIA/JESD22-A114-C exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (8)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
