74HC4051D

high-speed, Si-gate, CMOS device, 16SOIC, 8-channel, analog multiplexer/demultiplexer, -0.5 to +11.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.90

PartNumber:: 74HC4051D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-20

From Other Seller

Part Number:74HC4051D
US $0.07 - 0.90
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

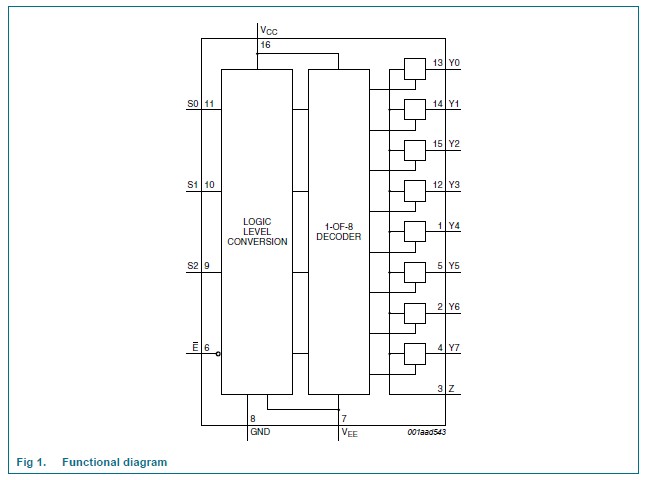

The 74HC4051D is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC4051D is specified in compliance with JEDEC standard no. 7A. The 74HC4051D is an 8-channel analog multiplexer/demultiplexer with three digital select inputs (S0 to S2), an active-LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). With E LOW, one of the eight switches is selected (low impedance ON-state) by S0 to S2. With E HIGH, all switches are in the high-impedance OFF-state, independent of S0 to S2.

Parametrics

74HC4051D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +11.0 V; (2)IIK, input clamping current, VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA max; (3)ISK, switch clamping current VSW < -0.5 V or VSW > VCC + 0.5 V: ±20 mA max; (4)ISW, switch current -0.5 V < VSW < VCC + 0.5 V: ±25 mA max; (5)IEE, supply current: ±20 mA max; (6)ICC, supply current: 50 mA max; (7)IGND, ground current: -50 mA max; (8)Tstg, storage temperature: -65 to +150 ℃; (9)Ptot, total power dissipation: DIP16 package: 750 mW max; SO16, (T)SSOP16, and; (10)DHVQFN16 package: 500 mW max; (11)P, power dissipation per switch: 100 mW max.

Features

74HC4051D features: (1)Wide analog input voltage range from -5 V to +5 V; (2)Low ON resistance: 80 Ω (typical) at VCC - VEE = 4.5 V; 70 Ω (typical) at VCC - VEE = 6.0 V; 60 Ω (typical) at VCC - VEE = 9.0 V; (3)Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals; (4)Typical break before make built-in; (5)ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (6)Multiple package options; (7)Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃.
