Product Summary
The TLE6240GP is a 16-fold Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages. The TLE6240GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications. The applications of the TLE6240GP inlcude μC Compatible Power Switch for 12 V and 24 V Applications, Switch for Automotive and Industrial System, Solenoids, Relays and Resistive Loads and Robotic Controls.
Parametrics
TLE6240GP absolute maximum ratings: (1)Supply Voltage, VS: -0.3 to +7 V; (2)Continuous Drain Source Voltage, VDS: 45 V; (3)Input Voltage, All Inputs and Data Lines, VIN: - 0.3 to + 7 V; (4)Load Dump Protection, VLoad Dump: 90V; (5)Output Current per Channel, ID(lim): ID(lim) min A; (6)Output Current per Channel @ TA = 25℃ (All 16 Channels ON; Mounted on PCB ), ID1-8: 0.3A; ID9-16: 0.5A; (7)Output Current (Max. total current of all channels on; Heat Sink required), IDmax: 14 A; (8)Single Pulse Inductive Energy (internal clamping), EAS: 50 mJ; (9)Power Dissipation, Ptot: 3.3 W; (10)Electrostatic Discharge Voltage, VESD: 2000 V.
Features
TLE6240GP features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol); (5)Direct Parallel Control of Eight channels for PWM Applications; (6)Parallel Inputs High or Low Active Programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3V Microcontrollers; (10)Electostatic discharge (ESD) Protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

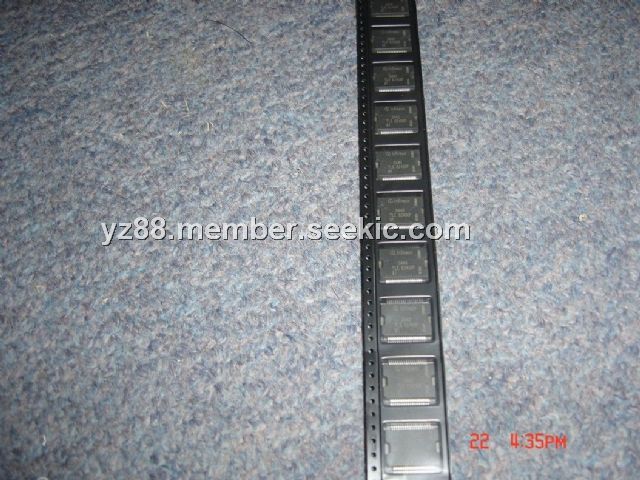

 TLE6240GP |
Infineon Technologies |
Power Switch ICs - Power Distribution MULTI CHANNEL SWITCH |
Data Sheet |
|
|
||||||||||||
