Product Summary

The SN74LS145N is a serial-in parallel-out shift register. The SN74LS145N is a high speed 8-Bit Serial-In Parallel-Out Shift Register. Serial data is entered through a 2-Input AND gate synchronous with the LOW to HIGH transition of the clock. The SN74LS145N features an asynchronous Master Reset which clears the register setting all outputs LOW independent of the clock. The SN74LS145N utilizes the Schottky diode clamped process to achieve high speeds and is fully compatible with all Motorola TTL products.

Parametrics

SN74LS145N absolute maximum ratings: (1)VCC Supply Voltage 54 to 74V; (2)TA Operating Ambient Temperature Range: 54 to 74℃; (3)IOH Output Current High: 54mA; (4)IOL Output Current Low: 54mA; (5)IIL Input LOW Current: -0.4 mA VCC = MAX, VIN = 0.4 V; (6)IOS Short Circuit Current: -20 to -100 mA when VCC = MAX; (7)ICC Power Supply Current: 27 mA when VCC = MAX.

Features

SN74LS145N features: (1)Typical Shift Frequency of 35 MHz; (2)Asynchronous Master Reset; (3)Gated Serial Data Input; (4)Fully Synchronous Data Transfers; (5)Input Clamp Diodes Limit High Speed Termination Effects; (6)ESD > 3500 Volts.

Diagrams

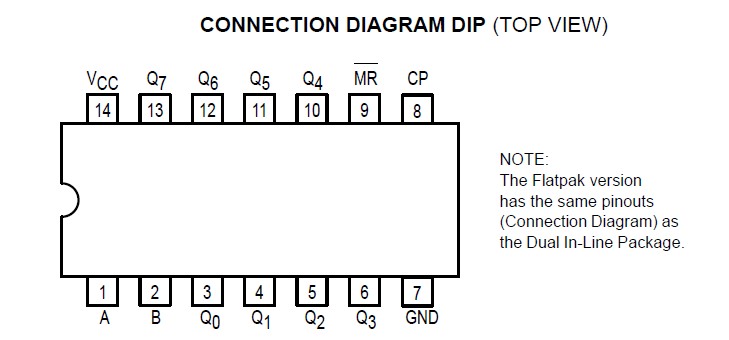

SN74LS145N dimentions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LS145N
SN74LS145N
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers BCD to Decimal
Data Sheet
0-1: $0.60
1-25: $0.54
25-100: $0.47
100-250: $0.42
