Product Summary

The 74HC540D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC540D is an octal inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs OE1 and OE2. A HIGH on OEn causes the outputs to assume a high impedance OFF-state.

Parametrics

74HC540D absolute maximum ratings: (1)Vendor: NXP Semiconductors; (2)Category: Integrated Circuits (ICs); (3)Number of Circuits: 1; (4)Package / Case: 20-SOIC (0.295", 7.50mm Width); (5)Logic Type: Inverter; (6)Packaging: Bulk; (7)Mounting Type: Surface Mount; (8)Number of Inputs: 8; (9)Current - Output High, Low:7.8mA, 7.8mA; (10)Operating Temperature: -40℃ ~ 125℃; (11)Voltage - Supply: 2 V ~ 6 V; (12)Lead Free Status: Lead Free; (13)RoHS Status: RoHS Compliant.

Features

74HC540D features: (1)Inverting outputs; (2)Output capability: bus driver; (3)ICC category: MSI.

Diagrams

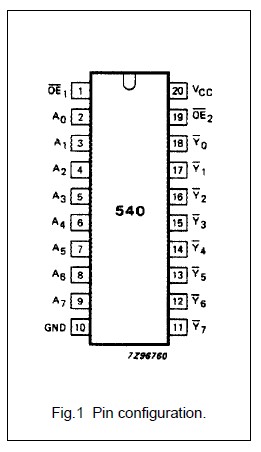

74HC540D pin configuration
