Product Summary

The TL061IDR is a JFET-input operational amplifier. The device is designed as low-power versions of the TL08_ series amplifiers. The TL061IDR featured high input impedance, wide bandwidth, high slew rate, and low input offse and input bias currents. The TL061IDR incorporates well-matched, high-voltage JFET and bipolar transistors in an integrated circuit.

Parametrics

TL061IDR absolute maximum ratings: (1)Supply voltage, VCC+: 18 V; (2)Supply voltage, VCC: -18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI: ±15 V; (5)Duration of output short circuit: Unlimited; (6)package thermal impedance, θJA: 97℃/W; (7)Operating virtual junction temperature, TJ: 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60s: 260℃; (9)Storage temperature range, Tstg: -65 to 150℃.

Features

TL061IDR features: (1)Very Low Power Consumption; (2)Typical Supply Current: 200 μA(Per Amplifier); (3)Wide Common-Mode and Differential Voltage Ranges; (4)Low Input Bias and Offset Currents; (5)Common-Mode Input Voltage Range Includes VCC+; (6)Output Short-Circuit Protection; (7)High Input Impedance: JFET-Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 3.5 V/μs Typ.

Diagrams

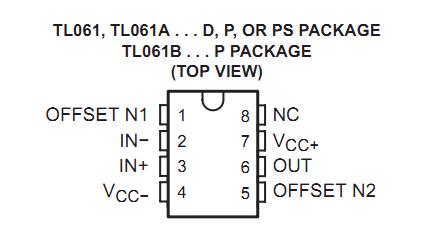

TL061IDR pin configuration
