Product Summary

The TEA2025B is a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier portable radio cassette players.

Parametrics

TEA2025B absolute maximum ratings: (1)VS Supply Voltage: 15 V; (2)IO Ouput Peak Current: 1.5 A; (3)TJ Junction Temperature: 150 ℃; (4)Tstg Storage Temperature: 150 ℃.

Features

TEA2025B features: (1)dual or bridge connection modes; (2)few external components; (3)supplyvoltagedown to 3v; (4)highchannel separation; (5)very low switch on/off noise; (6)max gain of 45db with adjust external resistor; (7)soft clipping; (8)thermal protection; (9)3v < vcc < 15v.

Diagrams

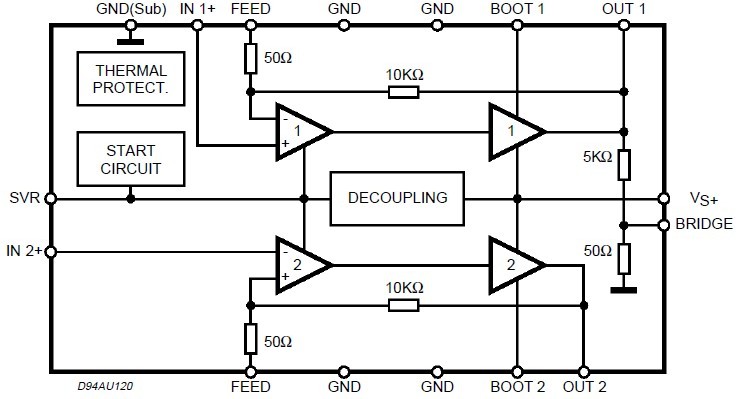

TEA2025B BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TEA2025B
TEA2025B

STMicroelectronics

Audio Amplifiers Stereo Audio Amp

Data Sheet

0-1: $0.68
1-10: $0.55
10-100: $0.46
100-250: $0.40
