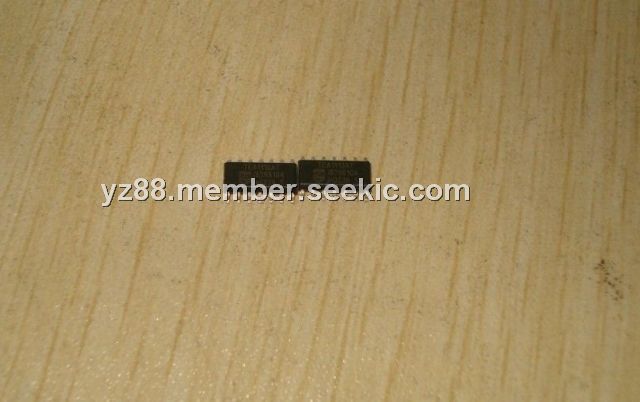

TEA1110AT

Low voltage, versatile telephone, transmission circuit, with dialler interface, SOP, 384 mW total power dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.35

PartNumber:: TEA1110AT

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-20

From Other Seller

Part Number:TEA1110AT
US $0.30 - 0.35
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TEA1110AT is a bipolar integrated circuit that performs all speech and line interface functions required in fully electronic telephone sets. TEA1110AT performs electronic switching between speech and dialling. The IC operates at a line voltage down to 1.6 V DC (with reduced performance) to facilitate the use of telephone sets connected in parallel. All statements and values refer to all versions unless otherwise specified.

Parametrics

TEA1110AT absolute maximum ratings: (1)VLN positive continuous line voltage: VEE - 0.4 to 12 V; repetitive line voltage during switch-on or line interruption:; (2)VEE - 0.4 to 13.2 V; (3)Vn(max) maximum voltage on all pins: VEE - 0.4 to VCC + 0.4V; (4)Iline line current RSLPE= 20 Ω; see Figs 10 and 11: 140 mA; (5)Ptot total power dissipation Tamb = 75 ℃; TEA1110AT: 384 mW; (6)Tstg storage temperature: -40 +125 ℃; (7)Tamb operating ambient temperature: -25 to +75 ℃.

Features

TEA1110AT features: (1)Low DC line voltage; operates down to 1.6 V (excluding voltage drop over external polarity guard); (2)Voltage regulator with adjustable DC voltage; (3)Provides a supply for external circuits; (4)Symmetrical high impedance inputs (64 kW) for dynamic, magnetic or piezo-electric microphones; (5)Asymmetrical high impedance input (32 kW) for electret microphones; (6)DTMF input with confidence tone; (7)MUTE input for pulse or DTMF dialling; (8)Receiving amplifier for dynamic, magnetic or piezo-electric earpieces; (9)AGC line loss compensation for microphone and earpiece amplifiers.
