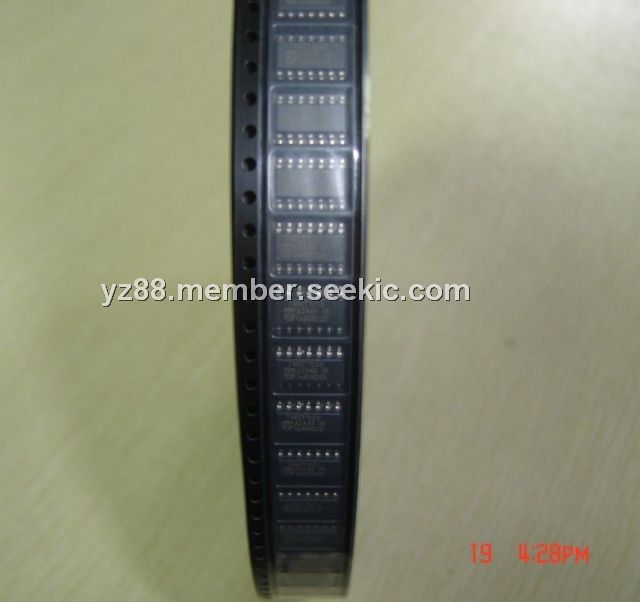

Product Summary

The 74HCT125D quad buffer/line driver is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT125D has four non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs (nY) are controlled by the output enable input (nOE).

Parametrics

74HCT125D characteristics: (1)tPHL/ tPLH propagation delay nA to nY: Tamb=+25℃: typ=15ns, max=25ns; Tamb=-40 to +85℃: max=31ns; Tamb=-40 to +125℃: max=38ns; (2)tPZH/ tPZL 3-state output enable time nOE to nY: Tamb=+25℃: typ=15ns, max=28ns; Tamb=-40 to +85℃: max=35ns; Tamb=-40 to +125℃: max=42ns; (3)tPHZ/ tPLZ 3-state output disable time nOE to nY: Tamb=+25℃: typ=15ns, max=25ns; Tamb=-40 to +85℃: max=31ns; Tamb=-40 to +125℃: max=38ns; (4)tTHL/ tTLH output transition time: Tamb=+25℃: typ=5ns, max=12ns; Tamb=-40 to +85℃: max=15ns; Tamb=-40 to +125℃: max=18ns.

Features

74HCT125D features: (1)Output capability: bus driver; (2)ICC category: MSI.

Diagrams

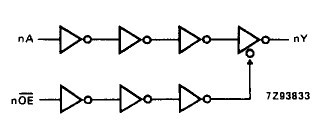

74HCT125D logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HCT125D,652
74HCT125D,652
NXP Semiconductors
Buffers & Line Drivers QUAD 3-STATE BUS BUF
Data Sheet
0-1: $0.06
1-25: $0.06
25-100: $0.06
100-250: $0.05
74HCT125D,653
74HCT125D,653
NXP Semiconductors
Buffers & Line Drivers QUAD BUFF/DRVR 3ST
Data Sheet
0-1: $0.06
1-25: $0.06
25-100: $0.06
100-250: $0.05
74HCT125DB,118
74HCT125DB,118
NXP Semiconductors
Buffers & Line Drivers QUAD 3-STATE BUS BUF
Data Sheet
0-1: $0.08
1-25: $0.07
25-100: $0.07
100-250: $0.06
74HCT125DB,112
74HCT125DB,112
NXP Semiconductors
Buffers & Line Drivers QUAD 3-STATE BUS BUF
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.12
74HCT125DB
74HCT125DB
NXP Semiconductors
Buffers & Line Drivers QUAD 3-STATE BUS BUF
Data Sheet
Negotiable
