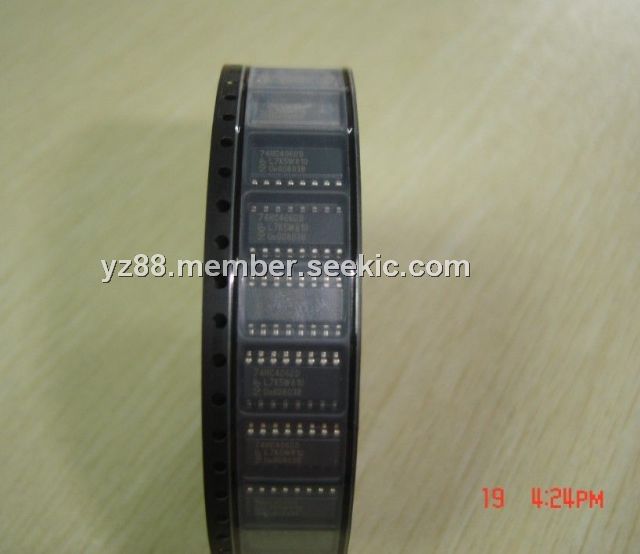

74HC4060D

14-stage, binary ripple counter, -0.5 to +7 V, SOP, RC or crystal oscillator configuration

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.13

PartNumber:: 74HC4060D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Elina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-09

From Other Seller

Part Number:74HC4060D
US $0.10 - 0.13
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC4060D is a high-speed Si-gate CMOS device and is pin compatible with the HEF4060. The 74HC4060D is a14-stage ripple-carry counter/divider and oscillator with three oscillator terminals (RS, RTC and CTC), ten buffered outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset (MR). The oscillator configuration allows design of either RC or crystal oscillator circuits. The oscillator 74HC4060D may be replaced by an external clock signal at input RS. In this case keep the other oscillator pins (RTC and CTC) floating. The counter 74HC4060D advances on the negative-going transition of RS. A HIGH level on MR resets the counter (Q3 to Q9 and Q11 to Q13 = LOW), independent of other input conditions. In the HCT version, the MR input is TTL compatible, but the RS input has CMOS input switching levels and can be driven by a TTL output by using a pull-up resistor to VCC.

Parametrics

74HC4060D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current, VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA max; (3)IOK, output clamping current, VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA max; (4)IO, output current, -0.5 V < VO < VCC + 0.5 V: ±25 mA max; (5)ICC, supply current: 50 mA max; (6)IGND, ground current: -50mA max; (7)Tstg, storage temperature: -65 to +150 ℃.

Features

74HC4060D features: (1)All active components ochip; (2)RC or crystal oscillator configuration; (3)Complies with JEDEC standard no. 7 A; (4)ESD protection: HBM JESD22-A114E exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (5)Multiple package options; (6)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
