Product Summary

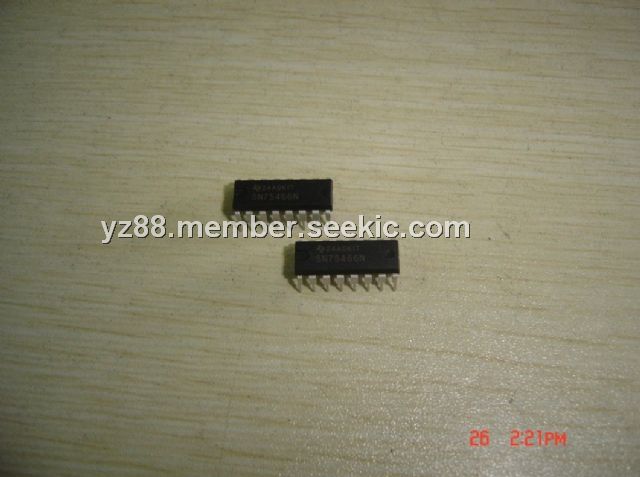

The SN75466N is a darlington transistor array.

Parametrics

SN75466N absolute maximum ratings: (1)Collector emitter voltage: 100V; (2)Input voltage: 30V; (3)Peak vollector current: 500mA; (4)Total emitter terminal current: -2.5A; (5)Operating free air temperature range: 0 to 70℃; (6)Storage temperature range: -65 to 150℃; (7)Lead temperature: 260℃.

Features

SN75466N features: (1)500mA rated collector current; (2)High clamp diodes; (3)Inputs compatible with various types of logic; (4)Relay driver applications; (5)Higher voltage versions.

Diagrams

SN75466N logic diagram
