Product Summary

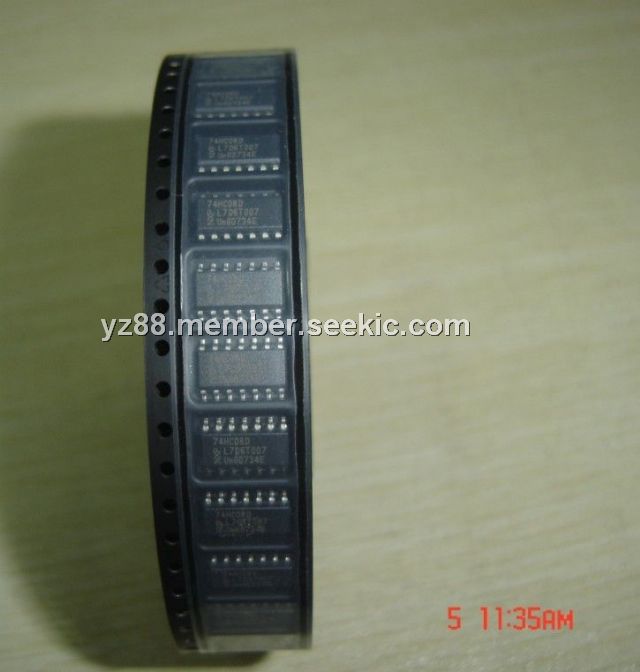

The 74HC08D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC08D provides the 2-input AND function.
Parametrics
74HC08D absolute maximum ratings: (1)supply voltage, VCC: -0.5 to +7.0V; (2)input diode current, IIK: ±20mA; (3)output diode current, IOK: ±20mA; (4)output source or sink current, IO: ±25mA; (5)VCC or GND current, ICC, IGND: ±50mA; (6)storage temperature, Tstg: -65 to +150℃; (7)power dissipation, Tamb = -40 to +125℃, Ptot: 500mW.
Features
74HC08D features: (1)Complies with JEDEC standard no.8-1A; (2)ESD protection; (3)Specified from -40 to +85℃ and -40 to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC08D,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE |
Data Sheet |
|
|
||||||||||||||||||
|
74HC08D,653 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND GATE |
Data Sheet |
|
|
||||||||||||||||||
|
74HC08DB,112 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE |
Data Sheet |
|
|
||||||||||||||||||
|
74HC08DB,118 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND GATE |
Data Sheet |
|
|
||||||||||||||||||
 |
74HC08DR2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) QUAD 2 INPT AND GATE |
Data Sheet |
|
|
||||||||||||||||||
 |
74HC08DTR2G |
|
IC GATE AND QUAD 2INPUT 14-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
